• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1927–1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6813

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RE074n RE084 RE134 RE134

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

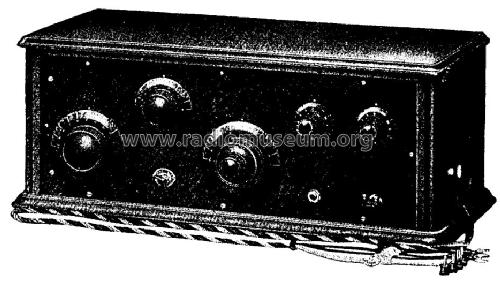

• Model: HANN27 Holz - SABA; Villingen

• Dimensions (WHD)
• 560 x 230 x 270 mm / 22 x 9.1 x 10.6 inch

• Notes
• BMappe 2;Übertr.GT=HANN28 ohne Zwischenbrett

• Price in first year of sale
• 146.00 RM +

• Source of data
• Radio Schnorr 1929 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Mentioned in
• Saba-Diplomarbeit
