• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1928/1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6754

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RE074n RE084 RE134 RE134

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: HANN 2000 [Glas] - SABA; Villingen

• Dimensions (WHD)
• 520 x 240 x 280 mm / 20.5 x 9.4 x 11 inch

• Notes

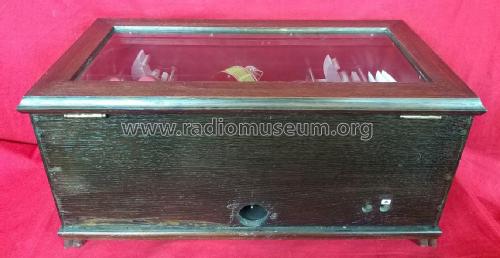

• BM 5;bis 2000 m ohne Sp-Wechsel (160,-+Rö) Holzgehäuse mit Glaseinsätzen in den Seitenwänden

• Price in first year of sale
• 253.00 RM +

• Source of data
• Radio Schnorr 1929 / Radiokatalog Band 1, Ernst Erb
