• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1926/1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6799

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• A409 A409 B406 B406

• Main principle
• TRF with regeneration; 1 Special; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org

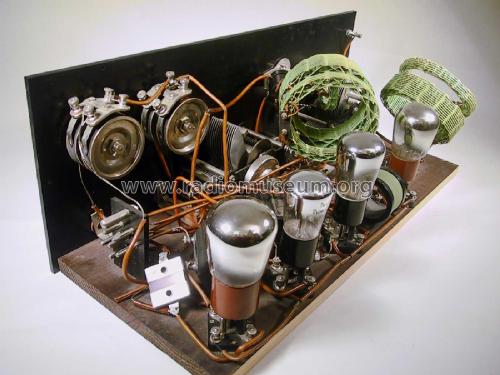

• Model: HANN - SABA; Villingen

• Notes
• Baumappe 2. Röhren Philips A409, A409, B406 und B406 gemäss Plan! Siehe auch die anderen Modelle, denn es gibt 1926 und 1927 je zwei Ausführungen (HANN und ANN - steht für HF, Audion und 2 x Niederfrequenz-Verstärkung).

• Price in first year of sale
• 137.00 RM +

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Saba-Diplomarbeit
