• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85568

• • Brand: Schwer & Söhne, GmbH

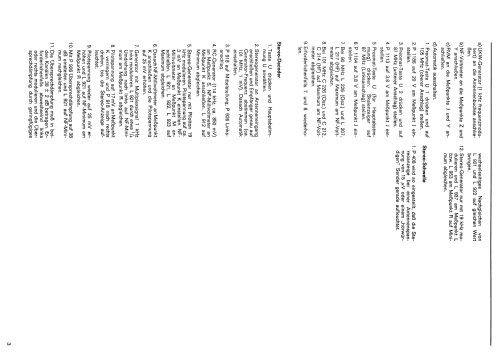

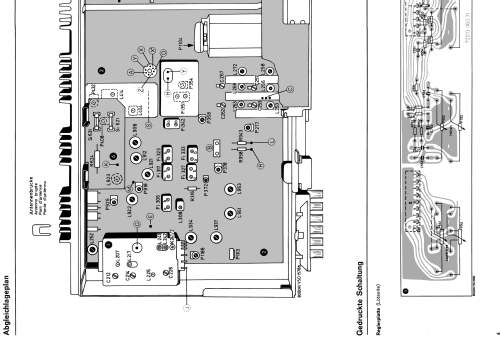

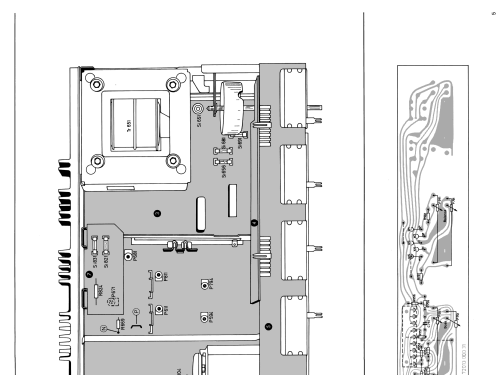

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 58

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: HiFi-Studio 8090 Stereo K - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 660 x 130 x 300 mm / 26 x 5.1 x 11.8 inch

• Notes
• ICs: 1.

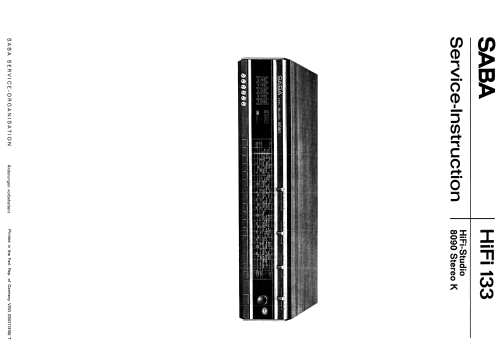

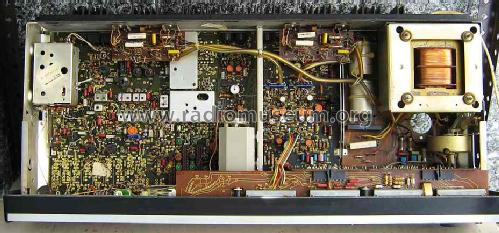

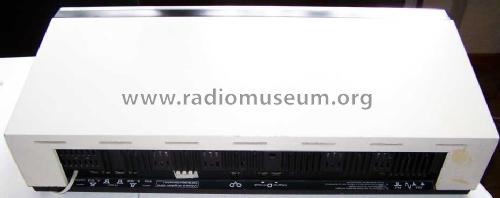

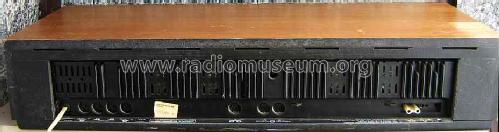

  Saba Stereo-Steuergerät Studio 8090 Stereo K.
  Ausgangsleistung: 2× 28 W (Sinus); Vierkanal-Wiedergabe möglich.

• Net weight (2.2 lb = 1 kg)
• 15.1 kg / 33 lb 4.2 oz (33.26 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.

• Other Models

• Here you find 1645 models, 1503 with images and 1187 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SABA; Villingen
