• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1971–1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28430

• • Brand: Schwer & Söhne, GmbH

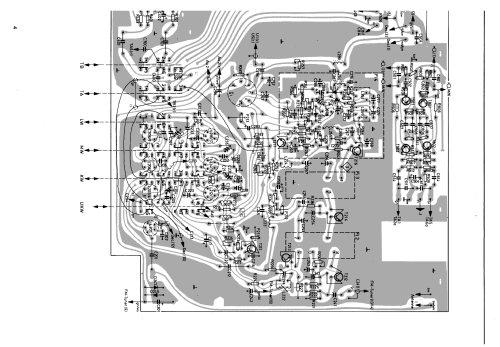

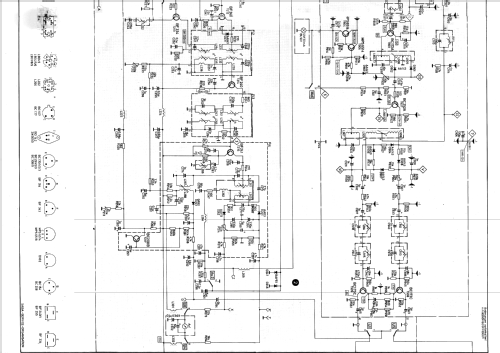

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 46

• Semiconductors
• BD142 BD142 BD142 BD142

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 24 W (36 W max.)

• Material
• Wooden case

• from Radiomuseum.org

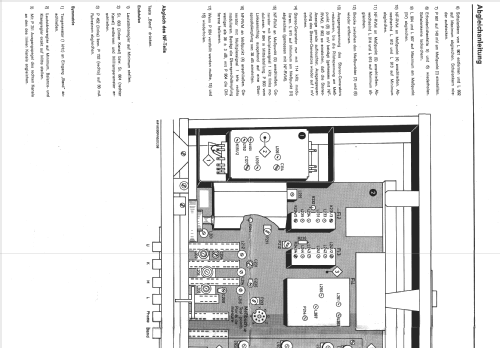

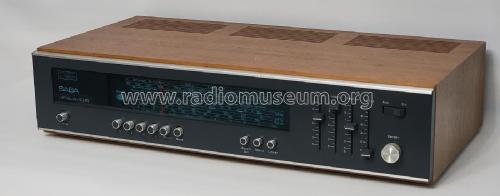

• Model: HiFi-Studio 8035 Stereo G - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 600 x 137 x 300 mm / 23.6 x 5.4 x 11.8 inch

• Notes
• HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 12 W (Sinus).
  Gehäuse: Nussbaum, naturhell oder mattweiss.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 648.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972
