• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1969–1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27740

• • Brand: Schwer & Söhne, GmbH

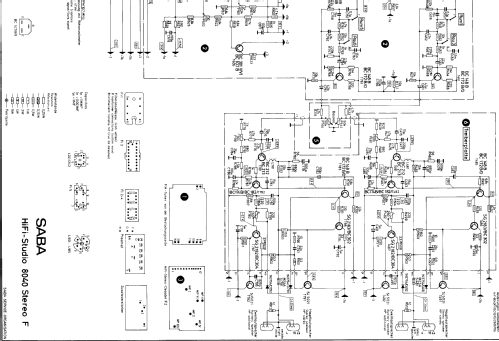

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 55

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     16 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (50 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Hifi Studio 8040-Stereo-F St-8040-F - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 608 x 137 x 300 mm / 23.9 x 5.4 x 11.8 inch

• Notes
• HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 15 W (Sinus).
  Gehäuse: Nussbaum, naturhell mattiert oder mattweiss.

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Price in first year of sale
• 798.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970

• Mentioned in
• Handbuch VDRG 1970/1971

• Literature/Schematics (1)
• -- Original-techn. papers.
