HiFi-Studio 8100 Stereo

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1973–1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29123

• • Brand: Schwer & Söhne, GmbH

• Picture

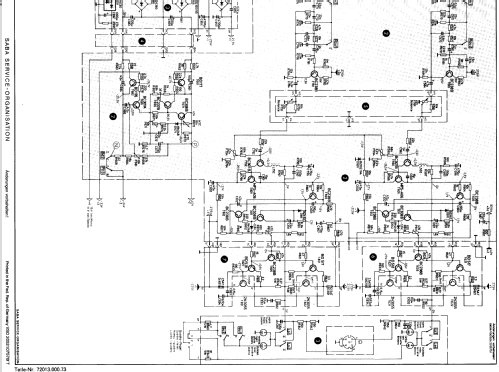

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 97

• Semiconductors
• BF245 BF246 BF255 BF256 BF241 BC171 BC251 BC238 BC107 BC307 BF237 MC1305P BC173 BC514 BC413 MPS-A06 BC308 BD517 BD518 2N3055 BD177 BD176

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     15 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (100 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: HiFi-Studio 8100 Stereo - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 660 x 130 x 300 mm / 26 x 5.1 x 11.8 inch

• Notes

• ICs: 1.
  HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 30 W (Sinus).

  Halbleitertypen nur einmal aufgeführt

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 998.00 DM

• External source of data
• Erb

• Source of data
• Katalog RFP 1973

• Mentioned in
• Handbuch VDRG 1974/1975 (bis 1976/77)
