HiFi-Verstärker VS80 Stereo G
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1971–1974
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 28434
-
- Brand: Schwer & Söhne, GmbH

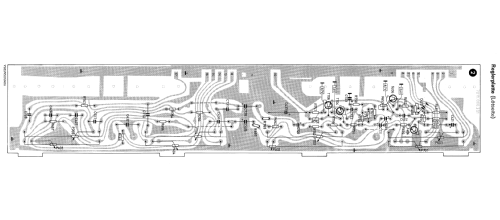

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 29
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 60 W (90 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: HiFi-Verstärker VS80 Stereo G - SABA; Villingen
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 515 x 115 x 280 mm / 20.3 x 4.5 x 11 inch
- Notes
-
Stereo-NF-Verstärker mit 2 Endstufen je 30 W (Sinus).
Gerät ist optisch für den Tuner TS80 G konzipiert.In den VDRG-Handbüchern lediglich als HiFi-Verstärker VS80 bezeichnet.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Price in first year of sale
- 598.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1971/1972
- Literature/Schematics (1)
- Handbuch VDRG 1972/1973
- Literature/Schematics (2)
- Handbuch VDRG 1973/1974
- Literature/Schematics (3)
- -- Original-techn. papers.
