• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1983/1984

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128561

• • Brand: Schwer & Söhne, GmbH

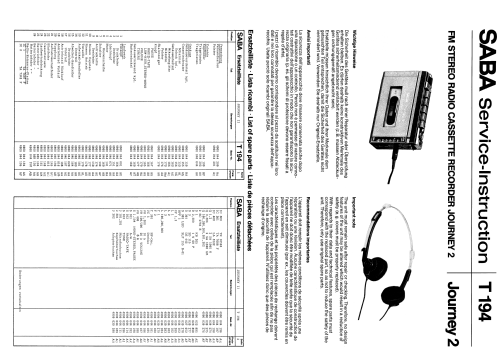

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Journey 2 - SABA; Villingen

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 89 x 145 x 35 mm / 3.5 x 5.7 x 1.4 inch

• Notes
• Ausführung: Schiefermatallic.
  Betrieb mit Stereo-Kopfhörer.
  System Compactsound, zum Anschluss der Boxen Saba CAS 2.

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
