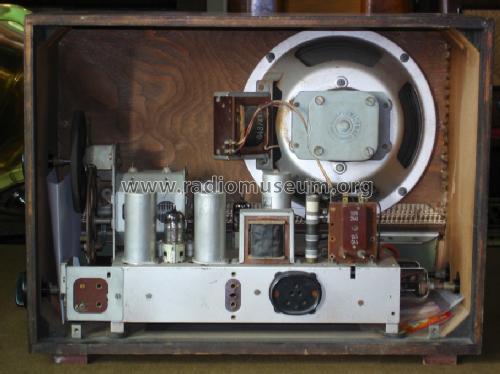

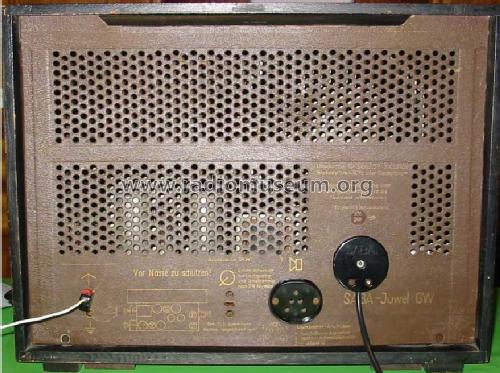

Juwel GW
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1949/1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6572
-
- Brand: Schwer & Söhne, GmbH
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 487 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Juwel GW - SABA; Villingen
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 495 x 352 x 227 mm / 19.5 x 13.9 x 8.9 inch
- Notes
- U2410
- Net weight (2.2 lb = 1 kg)
- 9.8 kg / 21 lb 9.4 oz (21.586 lb)
- Price in first year of sale
- 298.00 DM
- Source of data
- Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange-Nowisch
- Mentioned in
- Funkschau (4914)
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
- Other Models
-
Here you find 1643 models, 1495 with images and 1176 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from SABA; Villingen
Collections
The model Juwel is part of the collections of the following members.
Forum contributions about this model: SABA; Villingen: Juwel GW
Threads: 1 | Posts: 3
Hallo Sammlerfreunde,
der Kanalwähler des Juwel sieht UKW vor. Wer kann mir Infos über die Nachrüstung des Gerätes mit einem UKW-Tuner liefern oder sogar Teile anbieten.
Gruß, Dieter
Dieter Meseth, 10.Oct.06
