Konstanz Stereo F Mod. KN-F
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1969–1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27856
-
- Brand: Schwer & Söhne, GmbH
Quelle: Prospekt

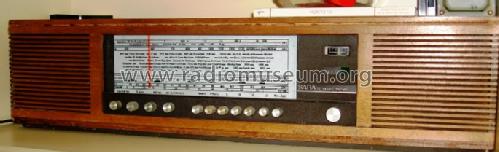

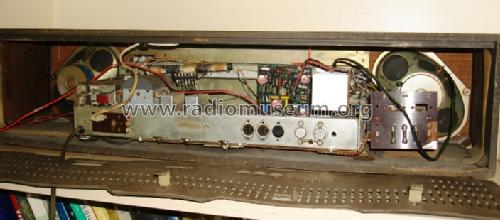

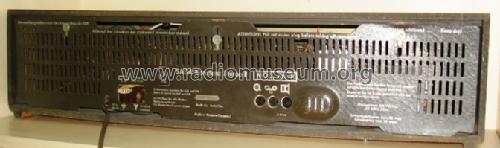

SABA Konstanz Stereo-F Transistorradio
SABA Konstanz Stereo-F Transistorradio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 27
- Semiconductors
- BF185 or. BF255 BF185 or. BF255 BF240 BF240 BF241 BF185 or. BF255 BC149 BC159 BC148 BC148 BC158 BC158 BC172 BC252 BC148 BC108 AD162 AD161 BC172 BC252 BC148 BC108 AD161 AD162 AD162 AD161 BC148 AA143 AA144 AA113 OA90 B30C150 W005
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Konstanz Stereo F Mod. KN-F - SABA; Villingen
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 746 x 180 x 204 mm / 29.4 x 7.1 x 8 inch
- Notes
-
Saba Stereodecoder F1 eingebaut; NF-Verstärker mit 2 Endstufen je 6 W. 2 Lautsprecher perm.-dyn. je 170 x 115 mm.
Gehäuse: Edelholz, mitteldunkel hochglanzpoliert oder Nussbaum, naturhell mattiert oder mattweiss.
Im Handbuch RFP 1970/71 wird die Transistoranzahl mit 21 und zusätzlich 6 für den Stereodecoder angegeben.
Dioden sind pro Typ einmal gelistet.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Price in first year of sale
- 448.00 DM
- External source of data
- erb
- Source of data
- Handbuch VDRG 1969/1970
- Mentioned in

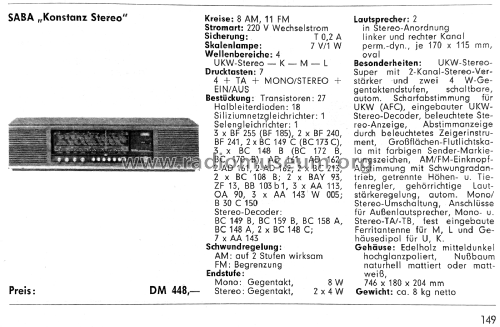

- Handbuch RFP 1969/70 und 1970/71 S.149 (Thiele)
- Literature/Schematics (1)

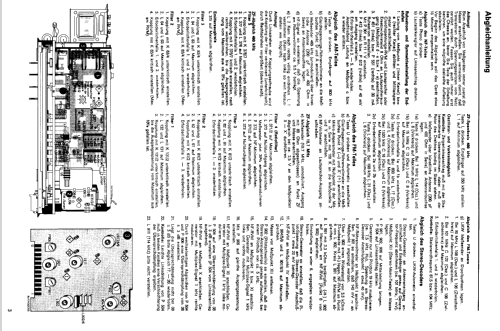

- -- Original-techn. papers. (Saba Service-Instruction R119)
- Literature/Schematics (2)
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971)
