• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1936/1937

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 6677

• • Brand: Schwer & Söhne, GmbH

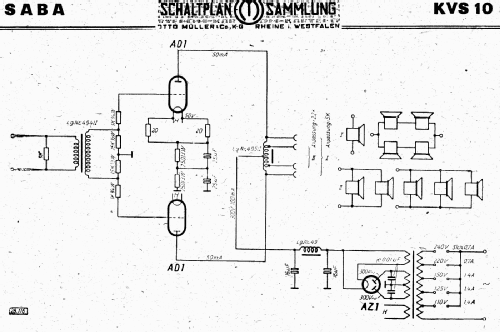

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• AD1 AD1 AZ1

• Main principle
• Audio-Amplification

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 10 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: KVS10 - SABA; Villingen

• Dimensions (WHD)
• 360 x 225 x 110 mm / 14.2 x 8.9 x 4.3 inch

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Price in first year of sale
• 103.00 RM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Mentioned in
• Saba-Diplomarbeit
