• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1973

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 129790

• • Brand: Schwer & Söhne, GmbH

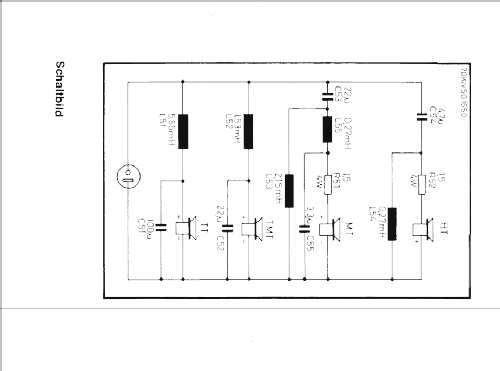

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 4 Loudspeakers

• Power out
• 50 W (70 W max.)

• Material
• Wooden case

• from Radiomuseum.org

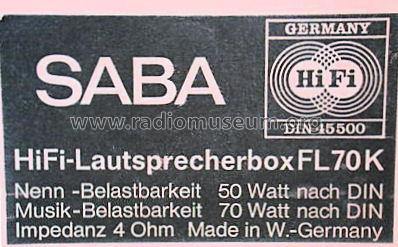

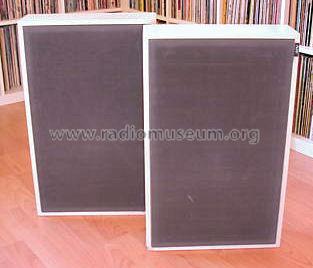

• Model: HiFi-Lautsprecherbox FL 70 K - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 360 x 580 x 110 mm / 14.2 x 22.8 x 4.3 inch

• Notes

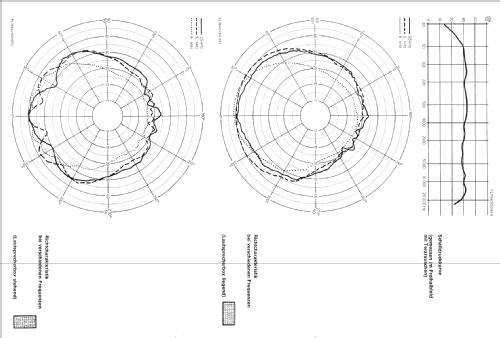

• 4 Ohm 4-Wege-System, Frequenzbereich von 30 Hz...22,5 kHz.

  Lautsprechersysteme

  1 Tieftonlautsprecher Chassis 200 mm
  1 Tiefmitteltonlautsprecher Chassis 200 mm
  1 Mittelton-Kalottenlautsprecher Chassis 110 mm
  1 Hochton-Kalottenlautsprecher Chassis 95 mm

  Gehäusevolumen 13 Liter netto

  Wandstärken: Gehäuse 19 mm, Schallwand 19 mm

  Festpreis von 1973 pro Stück

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Price in first year of sale
• 498.00 DM

• Mentioned in
• Original Saba Service Untarlagen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• -- Original prospect or advert (Saba HiFi-Programm 1973)

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
