• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1982 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 226385

• • Brand: Schwer & Söhne, GmbH

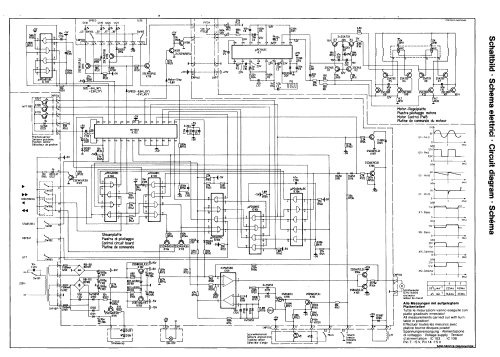

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Linear Tracking Record Player CSP 350 - SABA; Villingen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 440 x 115 x 440 mm / 17.3 x 4.5 x 17.3 inch

• Notes

• Automatischer Tangential-Plattenspieler mit Direktantrieb.

  Direkt-Antrieb mit Gleichstrom-Servo-Motor
  Gleichlaufschwankungen DIN 0,06%   WRMS 0,04%
  Tonabnehmersystem Typ TH51 S
  Abtastnadel ATN 51   15um konisch
  Übertragungsbereich 20 - 20000 Hz


• Source of data
• -- Original-techn. papers.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
