Logic Clock H

SABA; Villingen

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
SABA; Villingen

Year
1983/1984

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
85793

- Brand: Schwer & Söhne, GmbH

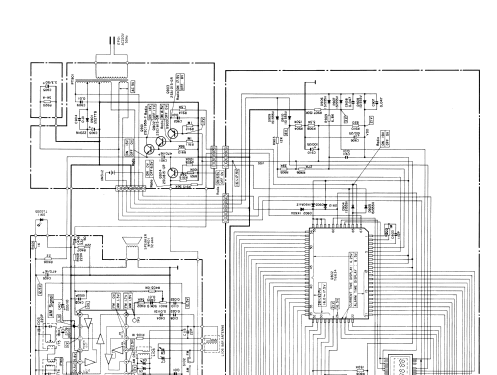

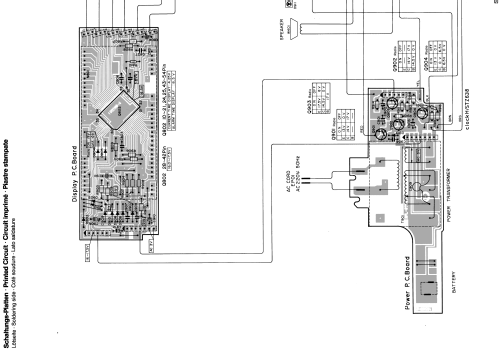

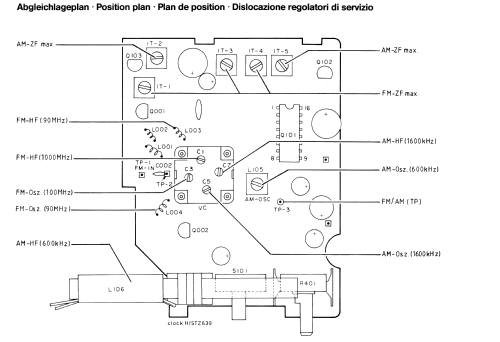

Schematics

Logic Clock H; SABA; Villingen (ID = 147044) Radio — SABA; Villingen Logic Clock H (3)

Logic Clock H; SABA; Villingen (ID = 147045) Radio — SABA; Villingen Logic Clock H (3)

Logic Clock H; SABA; Villingen (ID = 2031211) Radio — SABA; Villingen Logic Clock H (3)

Logic Clock H; SABA; Villingen (ID = 2031212) Radio — SABA; Villingen Logic Clock H (3)

Logic Clock H; SABA; Villingen (ID = 2031213) Radio — SABA; Villingen Logic Clock H (3)

Logic Clock H; SABA; Villingen (ID = 2031214) Radio — SABA; Villingen Logic Clock H (3)

Logic Clock H; SABA; Villingen (ID = 2031215) Radio — SABA; Villingen Logic Clock H (3)

Logic Clock H; SABA; Villingen (ID = 2031216) Radio — SABA; Villingen Logic Clock H (3)

Logic Clock H; SABA; Villingen (ID = 438102) Radio — SABA; Villingen Logic Clock H (2)

Logic Clock H; SABA; Villingen (ID = 146820) Radio — SABA; Villingen Logic Clock H (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
8

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Line / Batteries (any type) / 220; (2 × 1,5) Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Logic Clock H - SABA; Villingen

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Dimensions (WHD)
260 x 65 x 140 mm / 10.2 x 2.6 x 5.5 inch

Notes
ICs: T6634, TA7613AP.
Dioden: 15; 1 LED; LED-Display dimmbar, keramisches Filter für FM.
Gangreserve bei Netzausfall über 2× 1,5 V Trockenbatterien.
Ausführung: Anthrazitmetallic und Sandweiß.

Source of data
-- Original prospect or advert

Literature/Schematics (1)
-- Original-techn. papers. (SABA Service-Instruction "R 180")

Author
Model page created by a member from D. See "Data change" for further contributors.
