• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1991 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 290594

• • Brand: Schwer & Söhne, GmbH

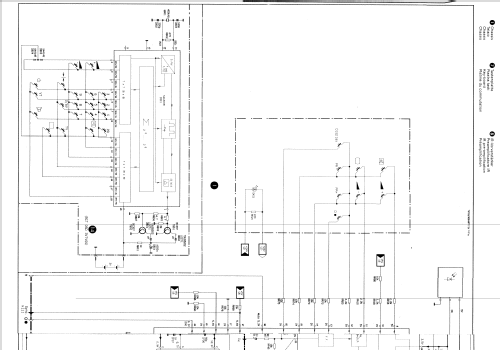

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: M3704 Ch= SX08 - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 372 x 338 x 368 mm / 14.6 x 13.3 x 14.5 inch

• Notes

• S/W-Gerät, 34 cm sichtbare Bildschirmdiagonale, IR-Fernbedienung, mit Zeitschaltuhr.

• Author
• Model page created by Willi Lich † 20.10.22. See "Data change" for further contributors.
