Mainau 100 Stereo
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1959/1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 22327
-
- Brand: Schwer & Söhne, GmbH

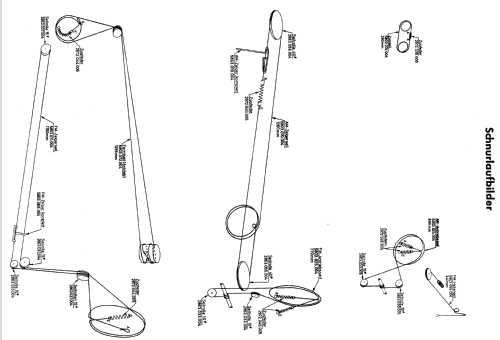

Q: Saba Service
by courtesy of the owner
by courtesy of the owner
by courtesy of the owner
Q: Katalog RF/FS-Großhandel 1959/60
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 460/6750 kHz
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 150, 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Mainau 100 Stereo - SABA; Villingen
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1050 x 750 x 405 mm / 41.3 x 29.5 x 15.9 inch
- Notes
-
Phono-Chassis = Dual 1004SD.
- Net weight (2.2 lb = 1 kg)
- 40.5 kg / 89 lb 3.3 oz (89.207 lb)
- Price in first year of sale
- 869.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
- Literature/Schematics (1)
- -- Original-techn. papers. (Service-Manual mit ETL-Liste)
