• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 133807

• • Brand: Schwer & Söhne, GmbH

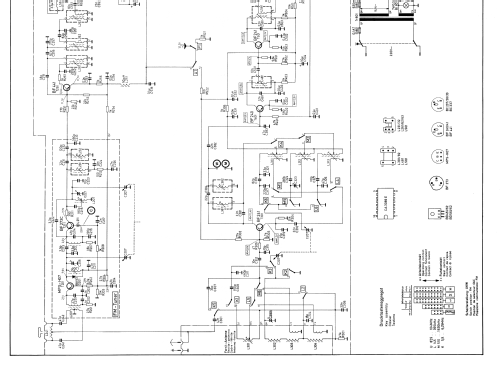

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 10 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

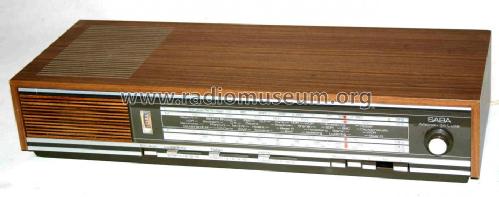

• Model: Mainau de Luxe K - SABA; Villingen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 630 x 100 x 235 mm / 24.8 x 3.9 x 9.3 inch

• Notes
• ICs: 1.
  Saba Heimempfänger Mainau de Luxe K.Gespreiztes 49-m-Band; Abstimm-Anzeige mit Instrument.
  Gehäuse: nussbaumfarben oder mattweiß.

• Source of data
• Handbuch VDRG 1975/1976

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
