• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21937

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EC92 EC92 ECH81 EBF89 EM84 EABC80 EC92 EL95 EL95

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

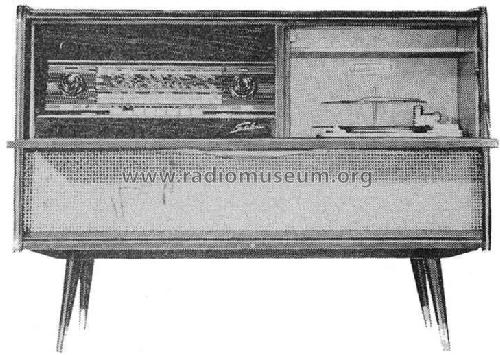

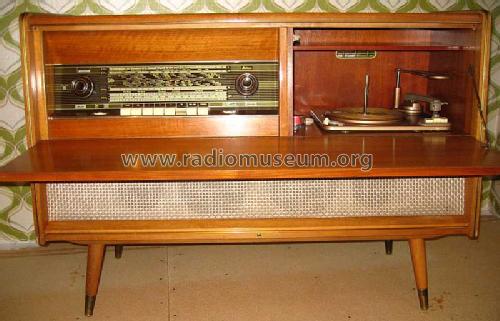

• Model: Musiktruhe Mainau 9 - SABA; Villingen

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1050 x 750 x 400 mm / 41.3 x 29.5 x 15.7 inch

• Notes

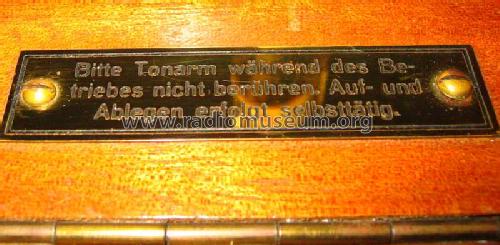

• Phono-Chassis = Dual 1004S.

• Net weight (2.2 lb = 1 kg)
• 39 kg / 85 lb 14.4 oz (85.903 lb)

• Price in first year of sale
• 859.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Literature/Schematics (1)
• -- Original-techn. papers.
