Meersburg Stereo automatic H Mod. ME-H

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1973–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29121

• • Brand: Schwer & Söhne, GmbH

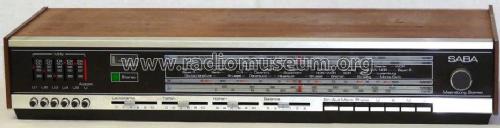

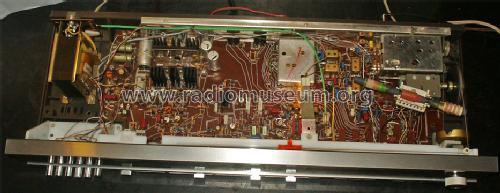

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 24 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Meersburg Stereo automatic H Mod. ME-H - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 645 x 120 x 235 mm / 25.4 x 4.7 x 9.3 inch

• Notes
• Stereo-Steuergerät.
  UKW: 5 Fixtasten und Hand-Abstimmung. NF-Verstärker mit 2 Endstufen je 12 W (Musik). 2 IC's,
  2 Lautsprecherboxen (195 × 300 × 130 mm) im Lieferumfang. Ausführung: nußbaumfarben oder mattweiß. Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Price in first year of sale
• 598.00 DM

• External source of data
• Erb

• Source of data
• Katalog RFP 1973

• Literature/Schematics (1)
• -- Original-techn. papers.
