Meersburg Stereo G Mod. ME-G

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1971–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85625

• • Brand: Schwer & Söhne, GmbH

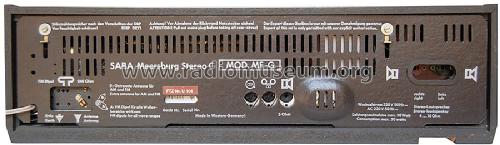

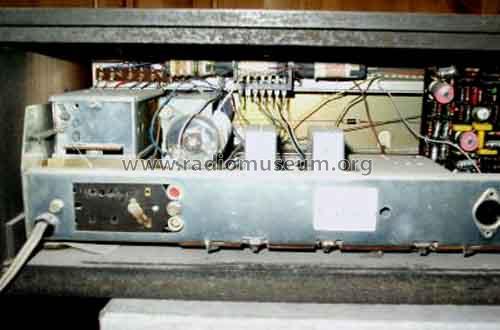

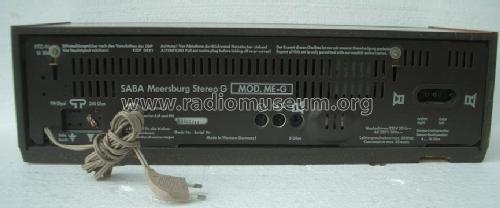

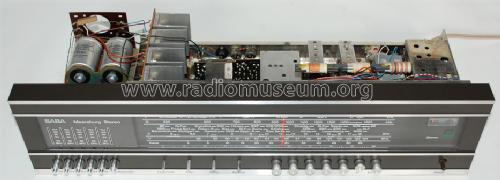

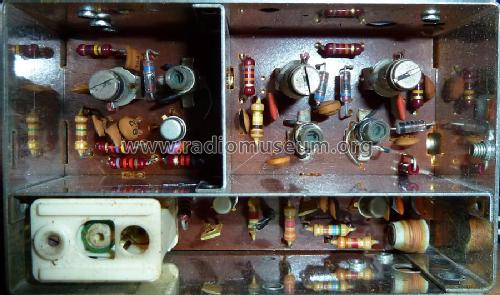

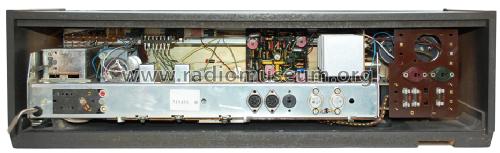

• Picture
• Schematics

Previous Next

Previous Next

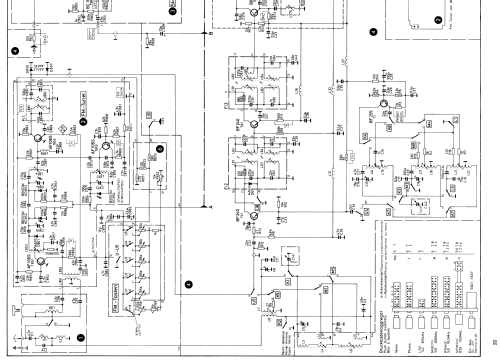

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 30

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Meersburg Stereo G Mod. ME-G - SABA; Villingen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 560 x 160 x 210 mm / 22 x 6.3 x 8.3 inch

• Notes
• Stereo-NF-Verstärker mit 2 Endstufen je 10 W; zwei Lautsprecherboxen im Lieferumfang.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 548.00 DM

• Source of data
• Handbuch VDRG 1971/1972

• Literature/Schematics (1)
• -- Original-techn. papers. (SABA Service-Instruction "R 127")

• Author
• Model page created by a member from D. See "Data change" for further contributors.
