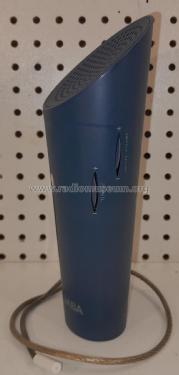

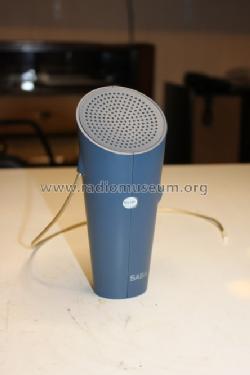

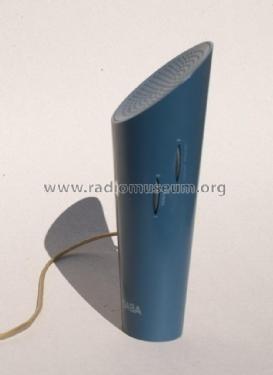

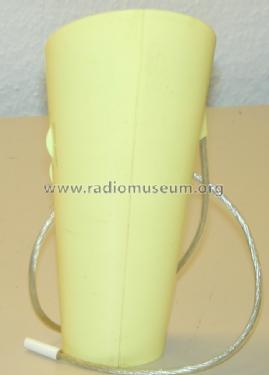

Oyé Oye PR6000
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1993 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 187465
-
- Brand: Schwer & Söhne, GmbH
Werbegeschenk, keine weiteren Infos.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage

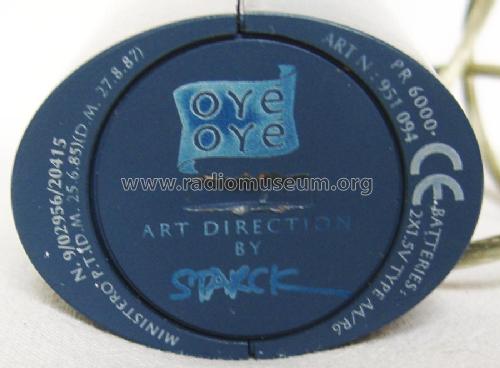

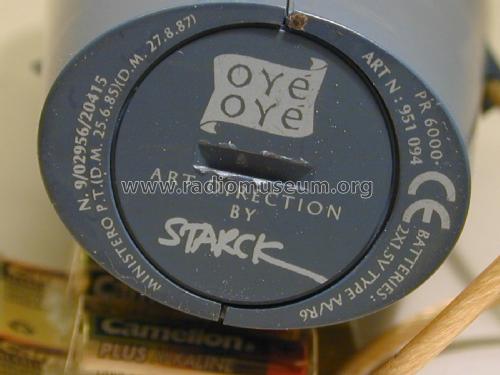

- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Oyé Oye PR6000 - SABA; Villingen
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 70 x 165 x 55 mm / 2.8 x 6.5 x 2.2 inch
- Notes
- Design by Philippe Starck.
Art.Nr.951094.
See also Thomson/Saba Oyé Oye PR6000S.
- Net weight (2.2 lb = 1 kg)
- 0.180 kg / 0 lb 6.3 oz (0.396 lb)
- Author
- Model page created by Dirk Bladt. See "Data change" for further contributors.
