Professional Receiver 9260 quartz reference
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1979
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 118372
-
- Brand: Schwer & Söhne, GmbH

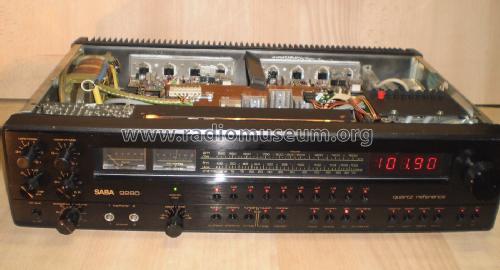

Modell 9260 in schwarz
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 97
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 10 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 140 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Professional Receiver 9260 quartz reference - SABA; Villingen
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 540 x 135 x 330 mm / 21.3 x 5.3 x 13 inch
- Notes
- 31 IC; FM: 10 Festsendertasten, HF-Abstimmung 5fach, 9 LC-Kreise, 5 keramische ZF-Filter, Rotorsteuerung , Analog- und Digitalanzeige, für UKW schaltbar MHz - Kanal.
- Net weight (2.2 lb = 1 kg)
- 15 kg / 33 lb 0.6 oz (33.04 lb)
- Mentioned in
- - - Manufacturers Literature (Saba Service-Schaltbild HiFi 166)
- Literature/Schematics (1)
- Funkschau (21/1979, S. 1210 / Internationale Funkausstellung)
- Author
- Model page created by Walter Schmidt. See "Data change" for further contributors.
