• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1978 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 143869

• • Brand: Schwer & Söhne, GmbH

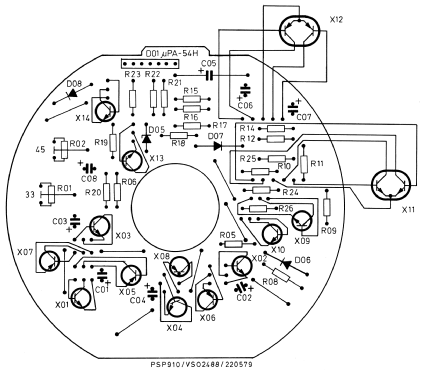

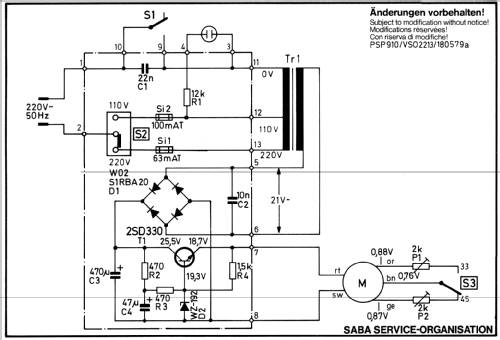

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

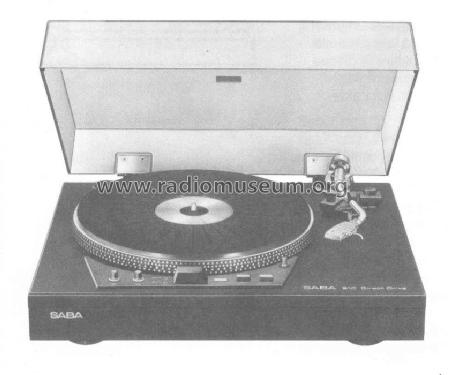

• Model: PSP910 - SABA; Villingen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 45 x 14.8 x 38 mm / 1.8 x 0.6 x 1.5 inch

• Notes
• 33/45 UpM; Gleichlaufschwankung ±0,08%; Übertragungsbereich 10-30000Hz.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Daniel Doll. See "Data change" for further contributors.
