• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1972–1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75682

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / C: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 inch = 26.7 cm

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

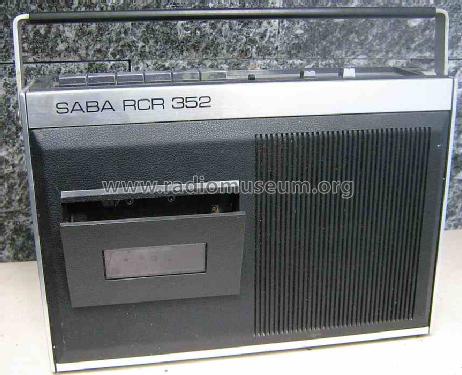

• Model: Radio Recorder RCR 352 H - SABA; Villingen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 200 x 70 mm / 11.4 x 7.9 x 2.8 inch

• Notes
• Saba Radio-Recorder RCR 352.
  ICs: 2.
  Anschluss für externe Gleichspannung 9 V.

• Net weight (2.2 lb = 1 kg)
• 2.7 kg / 5 lb 15.2 oz (5.947 lb)

• Price in first year of sale
• 328.00 DM

• Source of data
• Handbuch VDRG 1972/1973

• Mentioned in
• Handbuch VDRG 1973/1974 (1974/1975 und 1975/76)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Breu. See "Data change" for further contributors.
