• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20784

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EC92 EC92 ECH81 EBF89 EM80 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

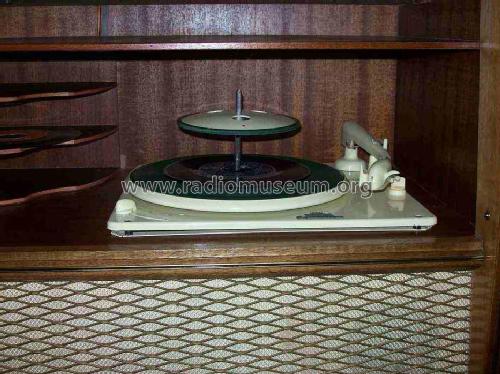

• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 125; 150; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

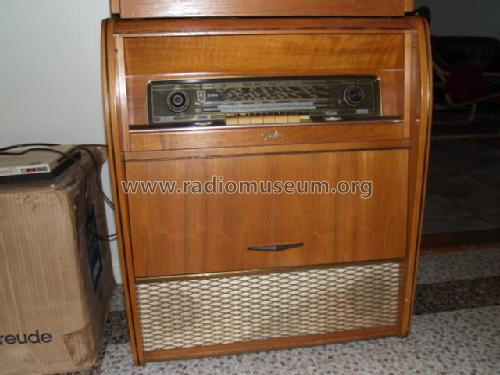

• Model: Reichenau 7 - SABA; Villingen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 640 x 867 x 400 mm / 25.2 x 34.1 x 15.7 inch

• Notes

• Rundfunk-Chassis = Wildbad 7;

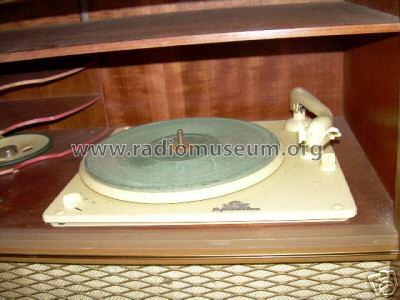

  Phono-Chassis = Perpetuum-Ebner Rex A.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Price in first year of sale
• 749.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57
