• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1962–1965

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 24618

• • Brand: Schwer & Söhne, GmbH

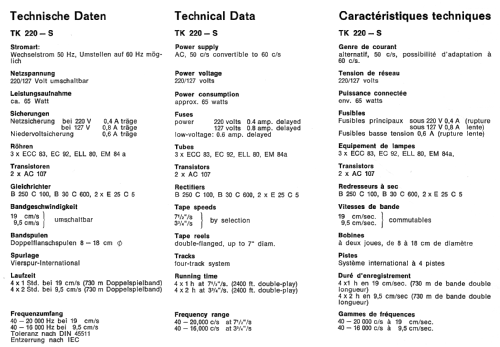

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC83 ECC83 ECC83 ELL80 EM84a EC92

• Number of Transistors
• 2

• Semiconductors
• AC107 AC107

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 117; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Sabafon TK220-S - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 190 x 370 mm / 16.1 x 7.5 x 14.6 inch

• Notes

• Vierspur Stereo; Spulen-Ø 18 cm.
  Frequenzgang: 40-16000 Hz bei 9,5 cm/s,
  40-20000 Hz bei 19 cm/s.
  Stereo-NF-Verstärker mit 2 Endstufen je 2,5 W.
  Fehlerhafte Bestückung im VDRG-Handbuch 1962/63.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 865.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Funk-Technik (FT) (23/1962, S. 787 - 790 / Ausführliche Beschreibung, Daten, Schema)
