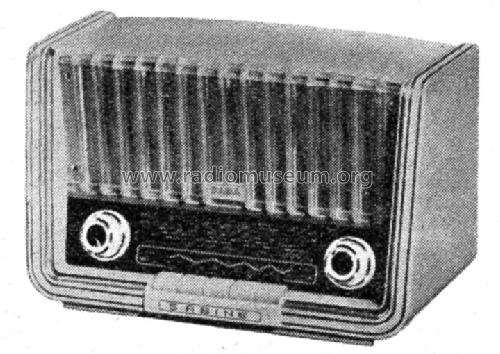

Sabine 55070 - 3000
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 20371
-
- Brand: Schwer & Söhne, GmbH
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 472/6750 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- AC/DC-set / 127/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Sabine 55070 - 3000 - SABA; Villingen
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 300 x 198 x 170 mm / 11.8 x 7.8 x 6.7 inch
- Notes
- erstes Sabine-Modell. Gehäuse hell.
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Price in first year of sale
- 209.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1955/56
- Mentioned in
- Katalog Thiele,Helmstedt 1955/56 (Rundfunk-Phono-Fernseh-Katalog)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Other Models
-
Here you find 1643 models, 1495 with images and 1176 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from SABA; Villingen
Collections
The model Sabine is part of the collections of the following members.
Forum contributions about this model: SABA; Villingen: Sabine 55070 - 3000
Threads: 1 | Posts: 1
Beim Hochladen war für mich nicht klar, ob die Unterlagen für dieses oder für das weiter gebaute Gerät (oder für beide) taugen ... Siehe also auch das andere Modell.
Ernst Erb, 19.Jan.03
