• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21746

• • Brand: Schwer & Söhne, GmbH

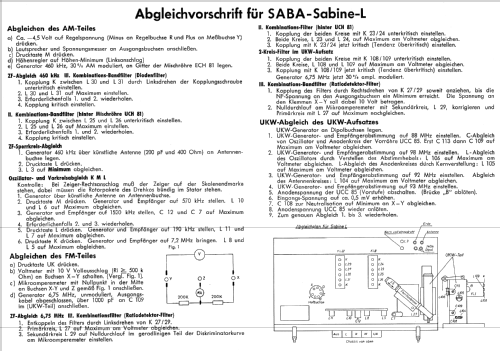

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 460/6750 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 110 (127) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

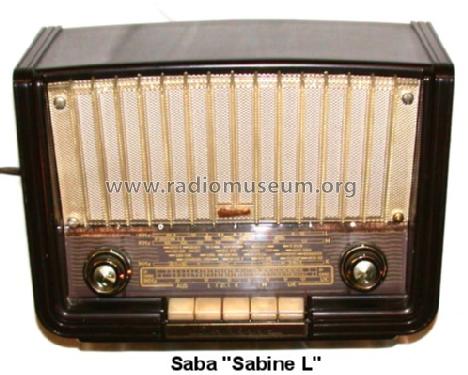

• Model: Sabine L 57070 - 3000 [braun] - SABA; Villingen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 300 x 200 x 180 mm / 11.8 x 7.9 x 7.1 inch

• Notes

• Getrennte AM/FM-Abstimmung mit Doppelknopf, UKW-Dreifach-Variometer.
  Siehe auch elfenbeinfarbenes Modell.

• Price in first year of sale
• 209.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Mentioned in
• -- Original-techn. papers.
