Schauinsland P170 electronic F
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1969
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 328879
-
- Brand: Schwer & Söhne, GmbH

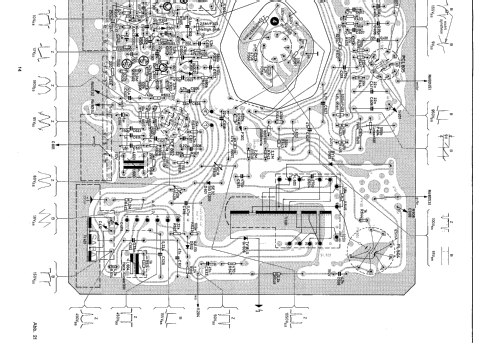

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- 18
- Semiconductors
- AF106 AF121 AF126 AF139 AF239 BC170 BC171 BC172 BC212 BF196 BF197 BF179 AA133 AA134 AA143 AA138 BA182 BB105 BY147 S6C SiG1/200 TV18 V40C2 ZD12 BY133 ZTK33
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Schauinsland P170 electronic F - SABA; Villingen
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 525 x 365 x 315 mm / 20.7 x 14.4 x 12.4 inch
- Notes
-
Saba Schauinsland P170 electronic F
- 44 cm s/w Portable-Fernsehgerät
- Empfangsbereiche
- VHF - Bereich Kanäle: 2 - 12
- UHF - Bereich Kanäle: 21 - 60
- Antenneneingang 240 Ohm symmetrisch
- 6 Senderwahltasten
- Lautsprecher: 8 x 12 cm.
- Weitere Halbleiter: 33 Dioden und Gleichrichter
Halbleitertypen jeweils einmal gelistet.
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
