• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1969 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 327341

• • Brand: Schwer & Söhne, GmbH

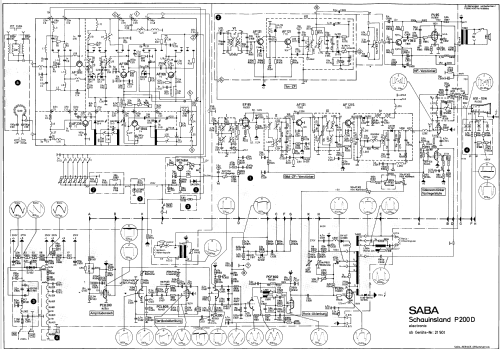

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF85 PCL805 PCF802 PCH200 PFL200 PL504 PL95 A51-10W

• Number of Transistors
• 11

• Semiconductors
• AF106 AF121 AF139 AF239 BC148 BFY39 AA119 AA133 AA138 BA138 BA139 BY134 BY147 BY250 OA126 V40C2

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Schauinsland P200 D electronic [ab Geräte-Nr. 21501] - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 554 x 413 x 342 mm / 21.8 x 16.3 x 13.5 inch

• Notes

• Saba, Schauinsland P200 D electronic

  • 51 cm Portable-Fernsehgerät
  • Empfangsbereiche
    • VHF-Bereich: Kanäle 2 - 12
    • UHF-Bereich: Kanäle 21 - 60
  • Teleskopantenne 2-fach für UHF und VHF
  • Lautsprecher 8 x 12 cm.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

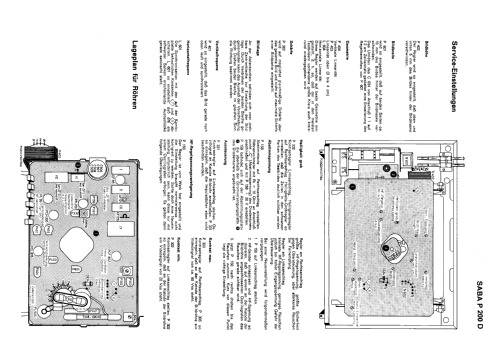

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
