Schauinsland P200 electronic F

SABA; Villingen

Data
Forum
Pictures
Collections

  • Year
  • 1969
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 165853
    • Brand: Schwer & Söhne, GmbH

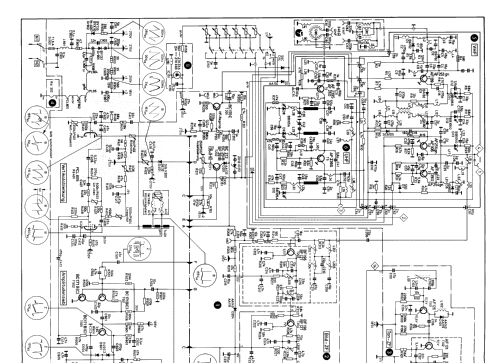

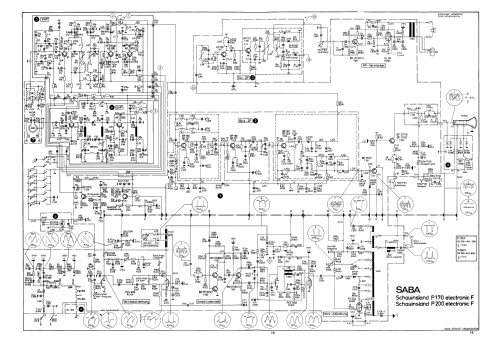

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • 18
  • Main principle
  • Superhet with RF-stage; ZF/IF 38900/33400/5500 kHz; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Schauinsland P200 electronic F - SABA; Villingen
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 570 x 415 x 345 mm / 22.4 x 16.3 x 13.6 inch
  • Notes

  • Saba Schauinsland P200 electronic F

    • 51 cm Portable-Fernsehgerät
    • Empfangsbereiche
      • VHF-Bereich: Kanäle 2 - 12
      • UHF-Bereich: Kanäle 21 - 60
    • Teleskopantenne 2-fach für UHF und VHF
    • Lautsprecher: 8 x 12 cm.
    • Ausführung
      • Nußbaum
        • naturhell
        • mattiert
      • mattweiss
    • Tragegriff abnehmbar.
  • Net weight (2.2 lb = 1 kg)
  • 19 kg / 41 lb 13.6 oz (41.85 lb)
  • Price in first year of sale
  • 648.00 DM
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
