• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1959/1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 101638

• • Brand: Schwer & Söhne, GmbH

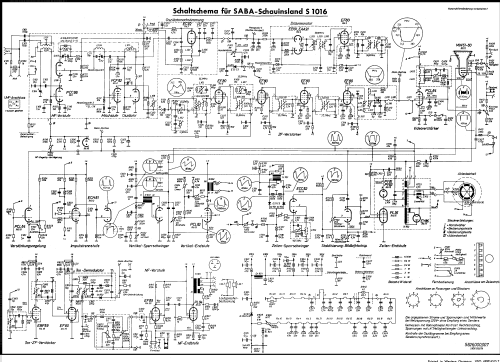

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• EAA91 EBF89 EC92 ECC82 ECH81 EF80 EF80 EF80 EF80 EF80 EF80 EF89 EY86 PCC88 PCF82 PCL82 PCL84 PL36 PL84 PY83 MW61-80

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

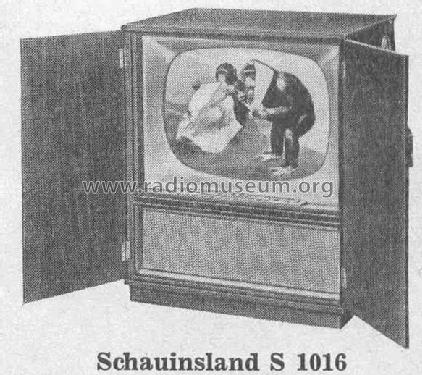

• Model: Schauinsland S1016 - SABA; Villingen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 710 x 895 x 525 mm / 28 x 35.2 x 20.7 inch

• Notes

• Technische Daten wie Schauinsland T804, jedoch 61-cm-Bildröhre im Standgehäuse auf Kugelgelenkrollen mit Klapptüren.

  Mehrpreis für eingebauten UHF-Tuner UES100: 129,- DM.

• Net weight (2.2 lb = 1 kg)
• 63 kg / 138 lb 12.3 oz (138.767 lb)

• Price in first year of sale
• 1,549.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
