Schauinsland T169 Vollautomatic
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1965/1966
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 111818
-
- Brand: Schwer & Söhne, GmbH

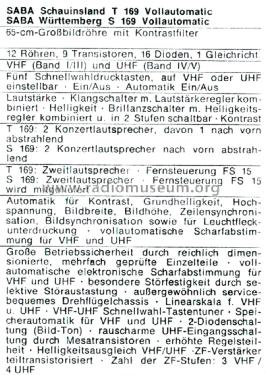

Q: Saba Katalog, FS-Geräte 1965

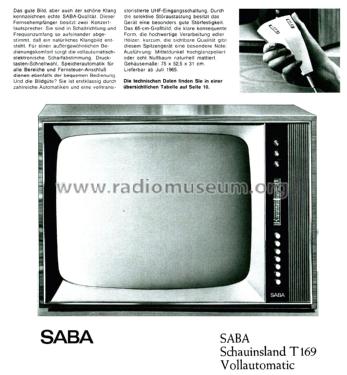

Q: Saba Katalog FS-Geräte 1965

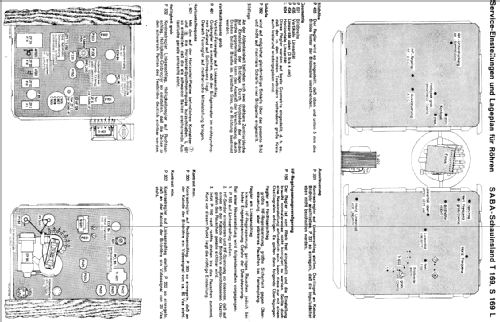

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Number of Transistors
- 9
- Semiconductors
- AF116 AF121 AF126 AF134 AF139 AF139 AF201 AF202 AC122 AA119 BA101 BA121 BY250 OA79 OA81 OA160 OA161 E20C3
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Schauinsland T169 Vollautomatic - SABA; Villingen
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 750 x 525 x 319 mm / 29.5 x 20.7 x 12.6 inch
- Notes
-
Saba, Schauinsland T169 Vollautomatic
- 65 cm s/w Fernsehgerät
- Empfangsbereiche
- VHF-Bereich: Kanäle 2 - 12
- UHF-Bereich: Kanäle 21 - 68
- Lautsprecher: 1 Stück 22 x 15 cm. und 1 Stück 13 x 6 cm.
- Antenneneingang 240 Ohm symmetrisch.
Die kabelgebundene Fernbedienung Typ FS15 enthält die Bedienelemente zum Einstellen der Lautstärke und der Helligkeit.
- Net weight (2.2 lb = 1 kg)
- 34.5 kg / 75 lb 15.9 oz (75.991 lb)
- Source of data
- Handbuch VDRG 1965/1966
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
