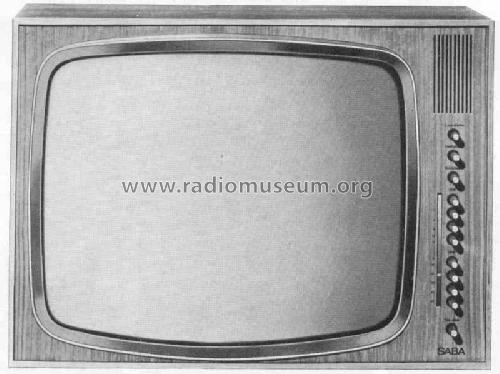

Schauinsland T187 Automatic

SABA; Villingen

Data
Forum
Pictures
Collections

  • Year
  • 1966/1967
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 112813
    • Brand: Schwer & Söhne, GmbH

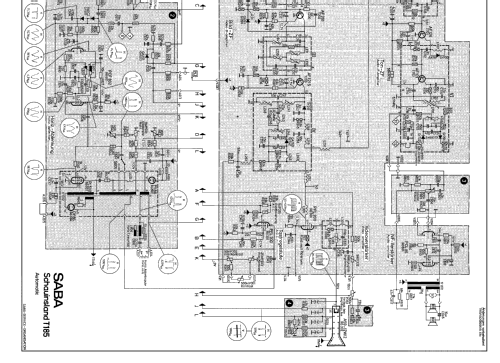

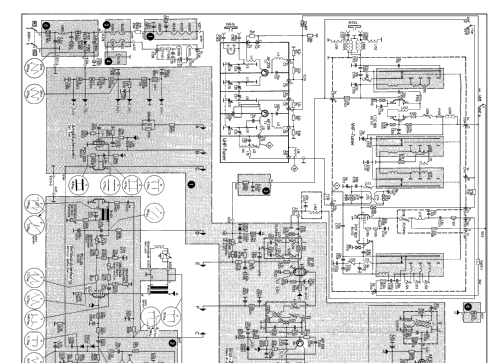

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Number of Transistors
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Schauinsland T187 Automatic - SABA; Villingen
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 660 x 510 x 400 mm / 26 x 20.1 x 15.7 inch
  • Notes

  • Saba, Schauinsland T187 Automatic

    • 59 cm s/w Fernsehgerät
    • 8 mechanische Speichertasten für VHF/UHF Programme.
    • UHF Transistor Tuner.
    • Empfangsbereiche
      • VHF-Bereich: Kanäle 2 - 12
      • UHF-Bereich: Kanäle 21 - 68
    • Lautsprecher: 1 Stück 19 x 10,5 cm. und 1 Stuck 8 x 5 cm.
    • Antenneneingang 240 Ohm symmetrisch.

    Die kabelgebundene Fernbedienung Typ FS15 enthält die Bedienelemente zum Einstellen der Lautstärke und des Helligkeit.

  • Net weight (2.2 lb = 1 kg)
  • 28 kg / 61 lb 10.8 oz (61.674 lb)
  • Price in first year of sale
  • 878.00 DM
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
