Schauinsland T192 /4U Automatic
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1967 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 327355
-
- Brand: Schwer & Söhne, GmbH

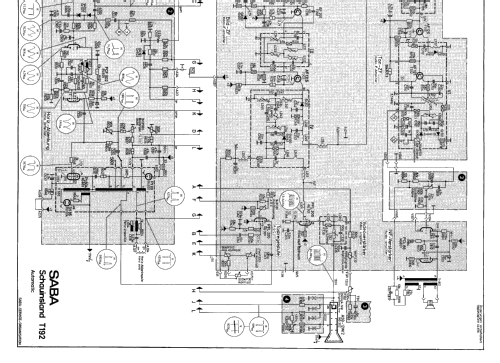

Picture from service manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Valves / Tubes
- PCC189 PCF801 EF85 PFL200 PCH200 PCF802 PCL85 PCL86 PL500 or PL504 PY88 DY86 A59-12W/2
- Number of Transistors
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Schauinsland T192 /4U Automatic - SABA; Villingen
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 680 x 490 x 400 mm / 26.8 x 19.3 x 15.7 inch
- Notes
-
Saba, Schauinsland T192 /4U Automatic
- 59 cm Fernsehgerät
- Empfangsbereiche
- VHF-Bereich: Kanäle 2 - 12
- UHF-Bereich: Kanäle 21 - 60
- Lautsprecher 19 x 10,5 cm.
- Antenneneingang 240 Ohm symmetrisch.
- Net weight (2.2 lb = 1 kg)
- 29 kg / 63 lb 14 oz (63.877 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
- Other Models
-
Here you find 1645 models, 1503 with images and 1186 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from SABA; Villingen
