Schauinsland T243 electronic G 1ª Serie
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1971 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 327853
-
- Brand: Schwer & Söhne, GmbH
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- 16
- Semiconductors
- TAA710 ZTK33 AF239 AF239 AF239 AF139 AF139 BF196 BF196 BF197 BC170 BC212 BC172 BC258 BC171 BC171 BC148 MJE340 AA133 AA138 BAX13 BA182 BY133 BY134 BB105 MR31 V40C2 TV18
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: Schauinsland T243 electronic G [1ª Serie] - SABA; Villingen
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 700 x 500 x 390 mm / 27.6 x 19.7 x 15.4 inch
- Notes
-
Saba Schauinsland T243 electronic G (1ª Serie)
- 61 cm Fernseh-Tischgerät
- Empfangsbereiche
- VHF - Bereich Kanäle: 2 - 12
- UHF - Bereich Kanäle: 21 - 60
- Antenneneingang 240 Ohm symmetrisch
- Lautsprecher: 11,5 x 17 cm.
- Weitere Halbleiter: 33 Dioden, 2 ICs
- Fernbedienung Typ FS-24
Siehe auch: Schauinsland T243 electronic G (3ª Serie)
- Net weight (2.2 lb = 1 kg)
- 24 kg / 52 lb 13.8 oz (52.863 lb)

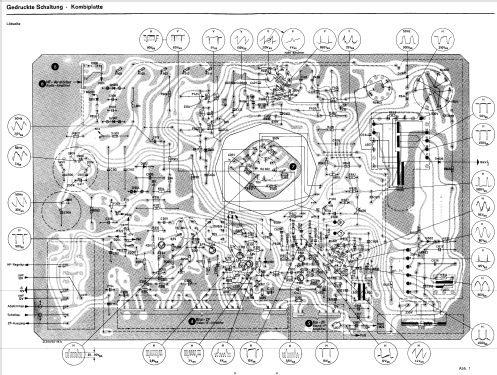

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
