Schauinsland T3000 telecommander E

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1969

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 277907

• • Brand: Schwer & Söhne, GmbH

• Picture

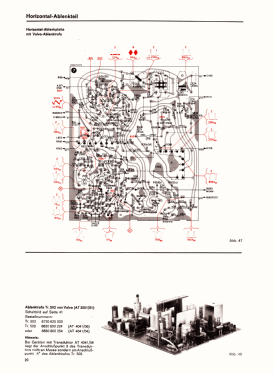

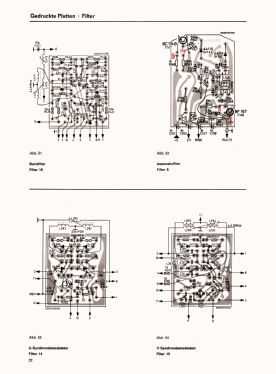

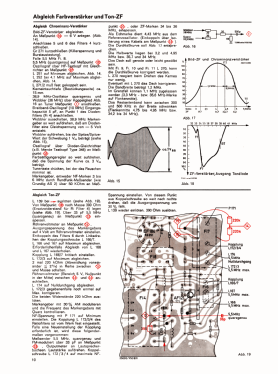

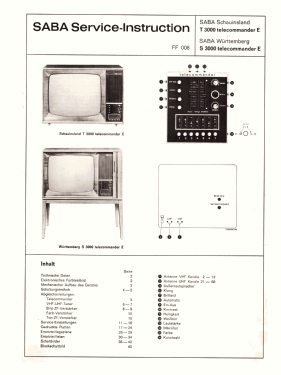

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• ECC82 EF183 EF184 EL95 PC92 PCC85 PCC88 PCF802 PCF200 PCH200 PCL84 PCL200 PL504 PL508 PL509 PY500 GY501 A63-11X or A63-16X

• Number of Transistors
• 27

• Semiconductors
• CA3035

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Schauinsland T3000 telecommander E - SABA; Villingen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 755 x 495 x 555 mm / 29.7 x 19.5 x 21.9 inch

• Notes

• Erstes Farbfernsehgerät von SABA mit Ultraschallfernbedienung.

  Röhren teilweise mehrfach vorhanden.
  Wellenbereiche: VHF-Kanäle 2-12, UHF-Kanäle 21-60.

• Net weight (2.2 lb = 1 kg)
• 48 kg / 105 lb 11.6 oz (105.727 lb)
