• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1957/1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 99745

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC88 PCF82 EF80 EF80 EF80 PCL81 EF80 EF80 PABC80 PCL82 ECL80 PCL82 PL81 PY81 EY86 MW43-69

• Number of Transistors

• Semiconductors
• OA160 OA161 OA161 E220C350

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

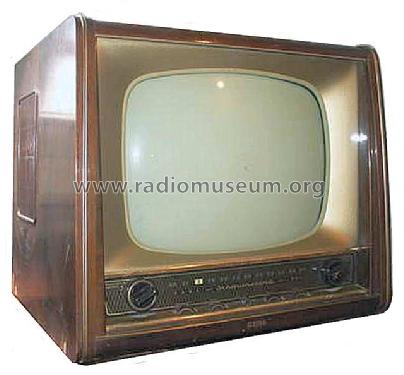

• Model: Schauinsland T644 Spezial - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 535 x 455 x 485 mm / 21.1 x 17.9 x 19.1 inch

• Notes
• Der Schauinsland T644 ist eine Weiterentwicklung des T604. Der VHF- Tuner erhielt eine PCC88. Empfangsbereich Kanal 2 bis Kanal 11.

• Net weight (2.2 lb = 1 kg)
• 32 kg / 70 lb 7.8 oz (70.485 lb)

• Price in first year of sale
• 798.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
