Schauinsland T904

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1959/1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 94843

• • Brand: Schwer & Söhne, GmbH

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC88 PCF82 EF80 EF80 EF80 PCL84 ECH81 PCL82 EBF89 EF80 PCL82 ECH81 PL36 PY88 DY86 AW43-88

• Number of Transistors

• Semiconductors
• OA160 OA161 OA161 RL232 RL232 E250C350

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Schauinsland T904 - SABA; Villingen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 520 x 455 x 394 mm / 20.5 x 17.9 x 15.5 inch

• Notes

• Nur VHF. UHF zusätzlich erhältlich oder nachrüstbar (DM 149,-). 1960 Preissenkung auf 699 DM

  Anschluss für Kabelfernbedienung (Lautstärke, Helligkeit, Kontrast).

• Net weight (2.2 lb = 1 kg)
• 23.2 kg / 51 lb 1.6 oz (51.101 lb)

• Price in first year of sale
• 829.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Mentioned in
• - - Manufacturers Literature (Saba Katalog 1959/60)

• Literature/Schematics (1)

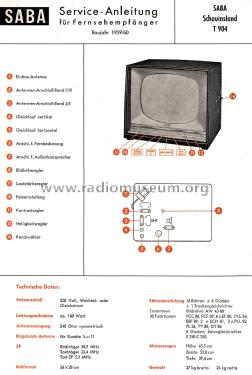

• -- Original-techn. papers. (Service-Anleitung FS-Geräte 1959/60)

• Author
• Model page created by Alexander Dörr. See "Data change" for further contributors.
