Schwarzwald Automatic 11V Stereo

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1961/1962

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 72931

• • Brand: Schwer & Söhne, GmbH

• Picture

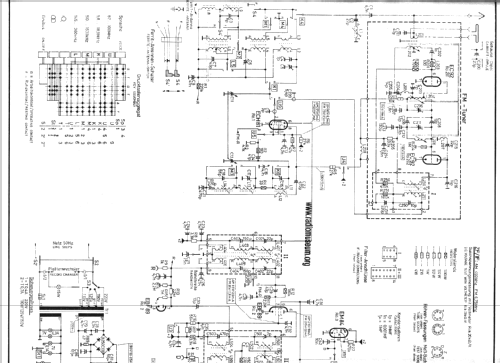

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• EC92 EC92 ECH81 EBF89 EM84 ECC83 EC92 EL95 EL95

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Schwarzwald Automatic 11V Stereo - SABA; Villingen

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1280 x 880 x 450 mm / 50.4 x 34.6 x 17.7 inch

• Notes
• Fernseh-Chassis = Schauinsland T116V Vollautomatic;
  Rundfunk-Chassis = Freudenstadt 11 Stereo;
  Phono-Chassis = Dual 1008..
  Abgleich (auch Steuerfilter)
  Alignment (also automatic filter)

• Price in first year of sale
• 2,299.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
