• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1963/1964

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 24985

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 ECC83 EL95

• Number of Transistors
• 2

• Semiconductors
• SFT337 AC125

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 127; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

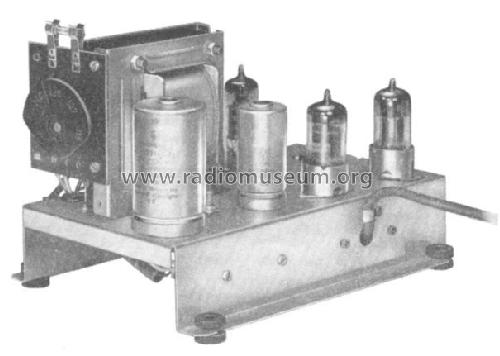

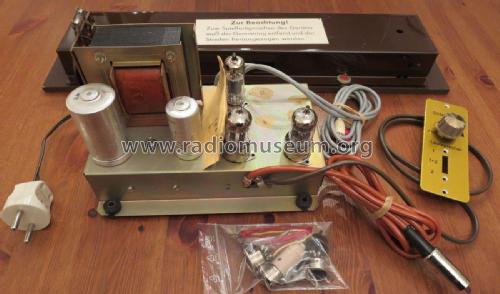

• Model: Nachhall-Gerät Sonorama 14 - SABA; Villingen

• Shape
• Chassis only or for «building in»

• Notes

• Hallgerät. Effekt stufenlos regelbar. Hallspirale extern.

• Price in first year of sale
• 182.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964

• Mentioned in
• -- Original-techn. papers.
