• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1988/1989

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 285353

• • Brand: Schwer & Söhne, GmbH

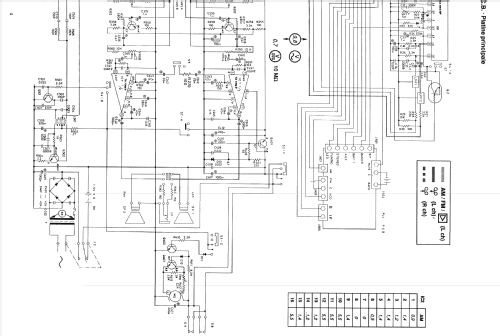

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors

• Main principle
• PLL, Phase-locked loop; ZF/IF 450/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 16 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

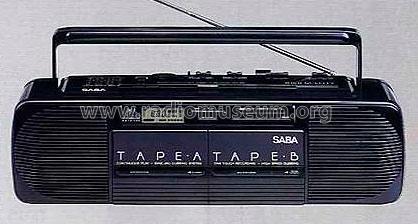

• Model: Synthesizer Radio Cassette Recorder RCR 588 - SABA; Villingen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 500 x 140 x 120 mm / 19.7 x 5.5 x 4.7 inch

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
