Telecomputer K Pro FP 31

SABA; Villingen

Data
Forum
Pictures
Collections

  • Year
  • 1974/1975
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 160951
    • Brand: Schwer & Söhne, GmbH

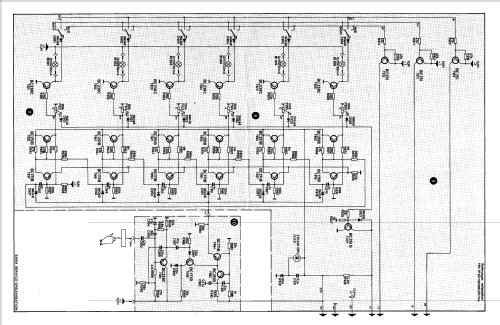

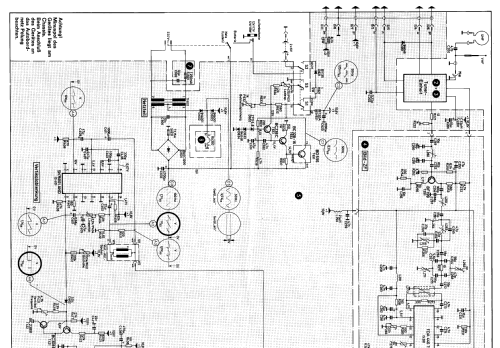

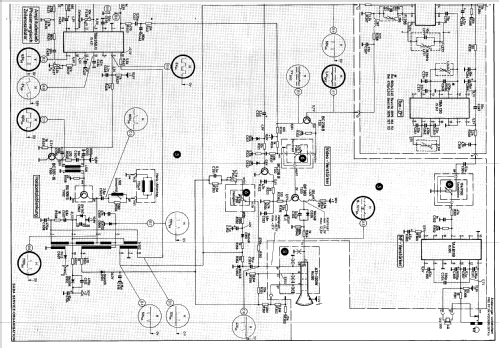

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / 220/ 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Telecomputer K Pro FP 31 - SABA; Villingen
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Saba Pro FP 31 telecomputer K

    • 31 cm 110° s/w TV
    • 6 beleuchtete Festsendertasten
    • CCIR B/G electronic Tuner mit autom. Programmdurchschaltung auf Knopfdruck
    • Kontrastfilterscheibe
    • Ohrhöreranschluß
    • Teleskopantenne & Ringdipol
    • IEC Antennenbuchse
    • auto. Ladeschaltung, 10.1 kg mit optionalen Batterien
    • 40/18 W Leistungsaufnahme
    • versenkbarer Tragegriff
    • Ausführungen
      • weiß
      • orange
      • ocker
    • Lieferbar ab ca. Mai 1974
  • Mentioned in
  • (D) Saba 1974 (Katalog) & Saba 1974/75 (Katalog)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
