• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1983–1989

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128511

• • Brand: Schwer & Söhne, GmbH

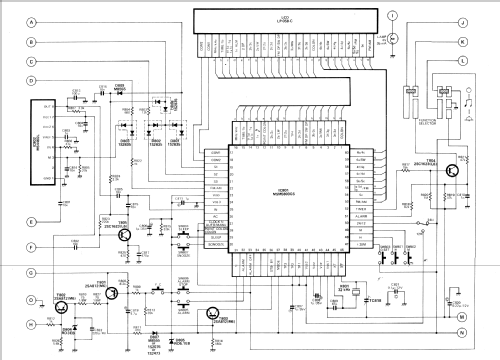

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Transworld - SABA; Villingen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 115 x 45 mm / 9.8 x 4.5 x 1.8 inch

• Notes

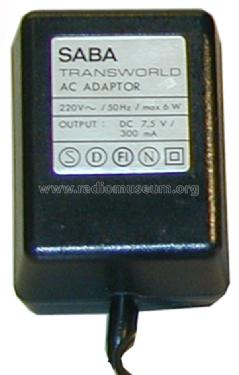

• Digitaluhr mit Einschlafautomatik. 6 gespreizte KW-Bereiche 11m bis 60m Band. Ausführung: Bronze. Gewicht mit Netzadaptor + 0.270 kg.g.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Price in first year of sale
• 2,590.00 ATS

• Source of data
• -- Original prospect or advert

• Mentioned in
• Weltempfänger Testbuch 1988/89 Nils Schiffhauer

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
