• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19457

• • Brand: Schwer & Söhne, GmbH

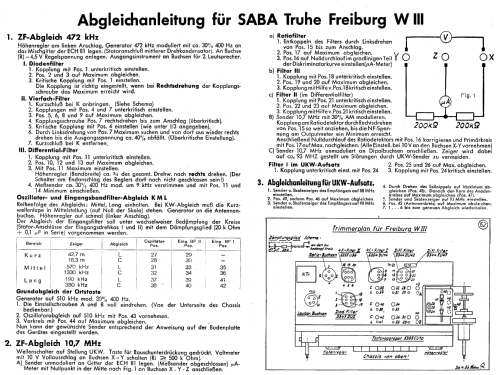

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EF80 EC92 ECH81 EF41 EM71 EAF42 EABC80 EF40 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Truhe Freiburg WIII [T10 ] - SABA; Villingen

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1392 x 900 x 420 mm / 54.8 x 35.4 x 16.5 inch

• Notes
• Siehe auch Variante T1 mit Einfachlaufwerk statt 10-Plattenwechsler. Peilantenne, Bandfiltereingang, MHG-Schaltung, eingeb. Spiegelbar.

• Net weight (2.2 lb = 1 kg)
• 73 kg / 160 lb 12.7 oz (160.793 lb)

• Price in first year of sale
• 1,750.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1953/54

• Literature/Schematics (1)
• -- Original-techn. papers.
