• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1984 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 300421

• • Brand: Schwer & Söhne, GmbH

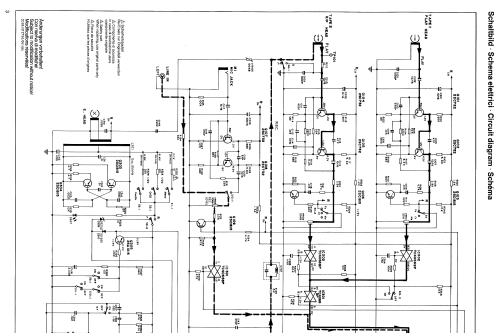

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 29

• Semiconductors
• 2SC732 2SC1815 or. 2SC1740 2SA1015 2SC1959 2SD880 BA6124 TA7629 CD4066 CD4011 7812 NJM2058

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Twin Soft Control Cassette Deck CD95 - SABA; Villingen

• Shape
• Book-shelf unit.

• Notes

• Frequenzgang 30Hz- 18 Khz

  Wow und Flutter 0,12%

  6,3mm Klinkenanschlüße für Kopfhörer und Stereo- Mikrofon

  Each semiconductor type listed once

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Josef Croati † 26.7.22. See "Data change" for further contributors.
