UA585-P
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 110626
-
- Brand: Schwer & Söhne, GmbH
Sent by António Manuel R. dos Santos

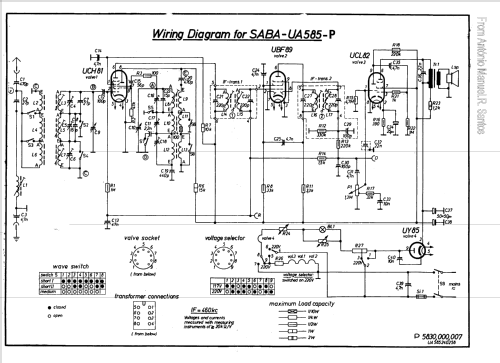

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: UA585-P - SABA; Villingen
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 300 x 200 x 170 mm / 11.8 x 7.9 x 6.7 inch
- Notes
- Export-Model.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Source of data
- -- Collector info (Sammler)
- Mentioned in
- From António Manuel Rodrigues dos Santos
- Author
- Model page created by Mario Coelho. See "Data change" for further contributors.
