Ultra Clock S

SABA; Villingen

Data
Forum
Pictures
Collections

  • Year
  • 1977 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 85775
    • Brand: Schwer & Söhne, GmbH

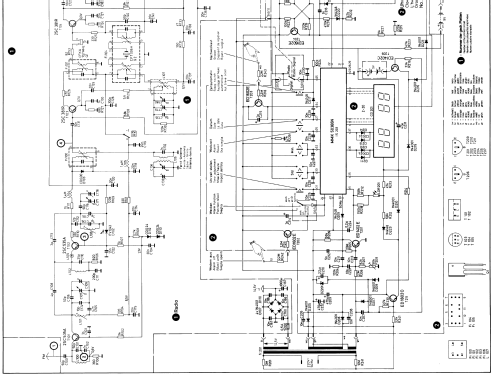

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Ultra Clock S - SABA; Villingen
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes
  • ICs: MK50366N, HA1325; 32 Dioden; Keramikfilter für AM und FM. Display-Helligkeit durch LDR geregelt.
  • Literature/Schematics (1)
  • -- Original-techn. papers. (SABA Ersatzteilliste "R 154")
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
