Ultra HiFi-Center 9940 electronic

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1979 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 226451

• • Brand: Schwer & Söhne, GmbH

• Picture

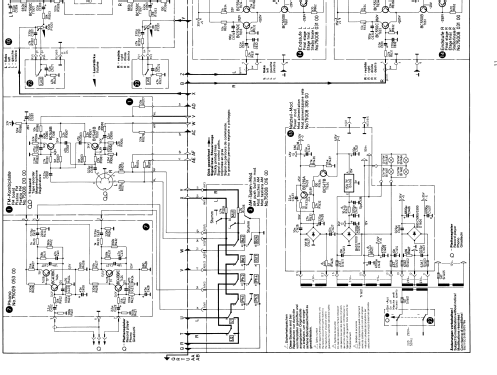

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org
• Model: Ultra HiFi-Center 9940 electronic - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Notes

• Kompaktanlage mit Plattenspieler und Cassettendeck.
